I cropped the image tighter so you can see better. The 4:1 current balun feeding the off center fed dipole can be seen about 6 feet below the pulley. The wires go out left and right about 45 feet to the left and 90 feet to the right.

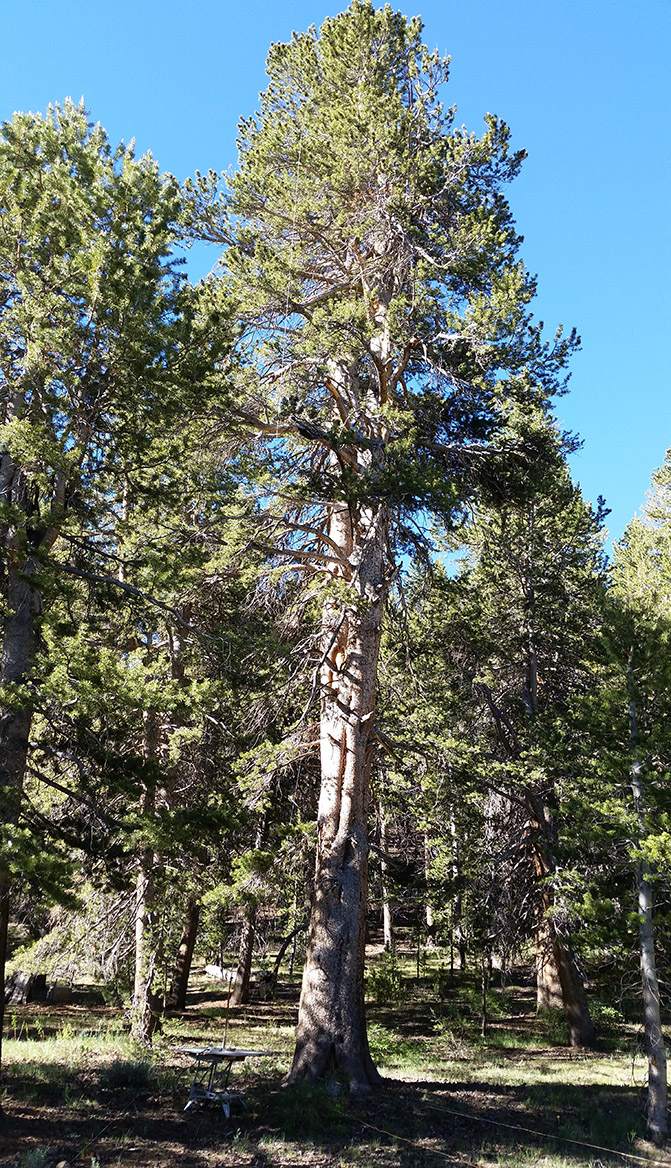

This picture shows the vertical antenna you also saw 3D modeled. You can see the white string supporting the vertical wire going up the tree.

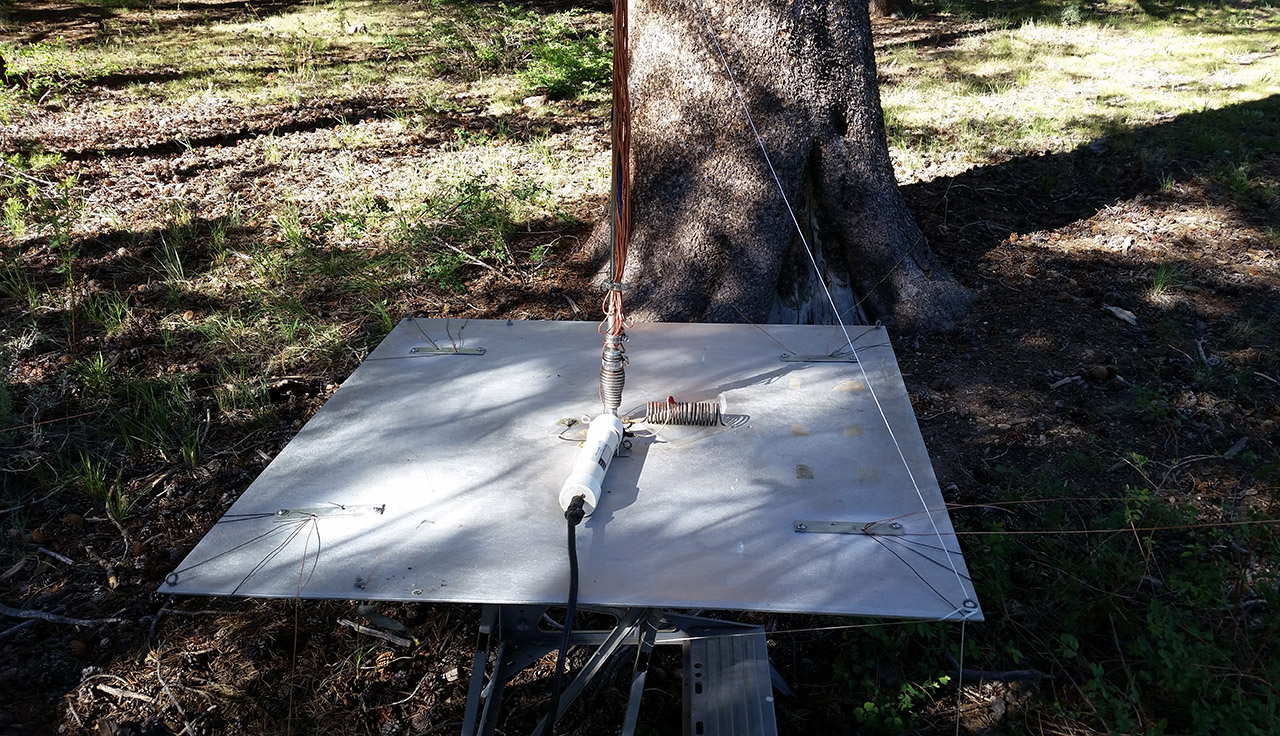

My aluminum radial plate. I attached the radials at the corners and this antenna is again fed with a 1:1 current balun. That home made coil allows me to move the tap point in an effort to tune the reactance out of the 64% wave length radiator.
