Here we're looking up close at the vertical's feedpoint. The disk near the top is the radial plate. Seventeen 120ft radials were attached and fan out in all directions, but they're too small to see except at the very top of the photo where two are visible. Again you can see another current balun underneath where the coax connects.
Here is a look from the back of the property showing the size of the antenna system compared to the house and second garage (where I was operating).

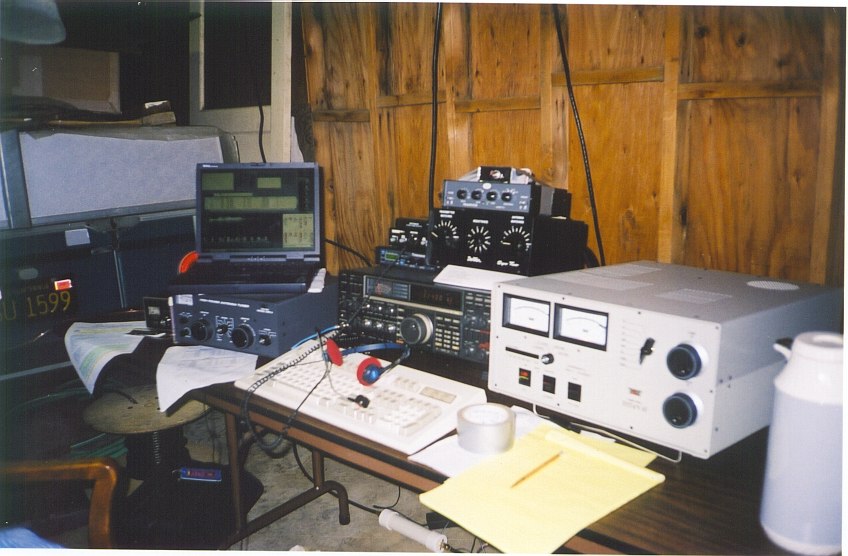

Here is a look inside the garage at the operating position. Tuners and laptop on the left, radio (IC-765), DSP's, preamp, receive loop switch, audio amp in the center and the TenTec Titan II Linear on the right.
